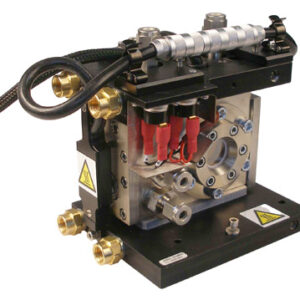

Harrick High Temperature Cell

Our High Temperature Cell permits transmission measurements studies of solid samples at temperatures ranging from ambient to in excess of 500°C in a controlled environment. The interior of the cell is made from chemically resistant 316 stainless steel and is thermally insulated to prevent heat loss. Two fittings are supplied to evacuate or flow gas through the cell. The cell features two K-type thermocouples for temperature regulation and monitoring. It is equipped with low-voltage heaters, compatible with the Harrick Temperature Controller, to heat the sample and a cooling conduit to reduce the temperature of the exterior of the cell during high temperature operation. The High Temperature Cell is ideal for examining catalytic and other gas-solid chemical interactions.

Quick Enquiry

See all product options

Operable from ambient temperature to 500°C (under vacuum).
Thermally-insulated transmission cell inhibits heat loss.
Easy to disassemble for sample exchange and cleaning between transmission measurements.
Fabricated from chemically-resistant 316 stainless steel.
Accommodates transmission samples 25mm in diameter and up to 10mm in thickness.
Optional insert available to hold 13 mm diameter pellets; 10 mm and 15 mm diameter inserts available on special order.
Water-cooling eliminates the need for high temperature window seals.
Two K-type thermocouples for independent monitoring of the sample and heating block temperatures.
Two 1/4" 316 stainless steel VCO fittings.
